Installing The Rear Outer Wheel Arch Section
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
When installing the new part, make sure that all bonding surfaces have sufficient adhesive.
When installing the new part, make sure that all bonding surfaces have sufficient adhesive.
- Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.CONSUMABLE DESCRIPTION
Cleaning agent R2 500 ml 83190417324 - Clean bonding surfaces on vehicle and on new part with cleaning agent R1.CONSUMABLE DESCRIPTION
Cleaning agent R1 100 ml, Bottle 83192211217 - Apply adhesive K5 to the bonding surfaces.ADHESIVE DESCRIPTION

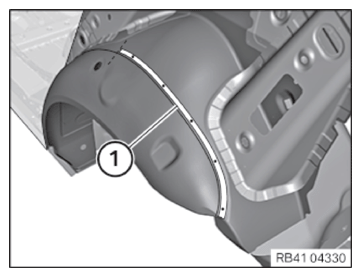

Body adhesive K5 50 ml 83192158654 - Install the new part and rivet with a blind rivet N3 in the area (1).CONSUMABLE DESCRIPTION
Blind rivet N3

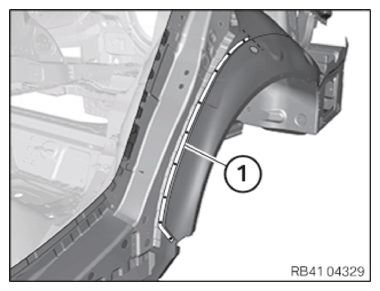

Ø 4 mm; clamping area 1-3 mm83190301421 - In area (1), rivet the new part with blind rivet N3.NOTE: TECHNICAL INFORMATION

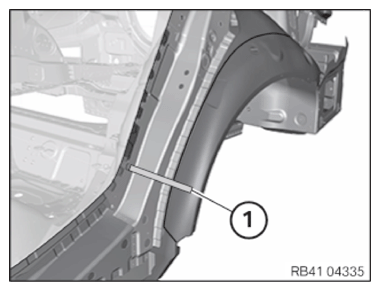

For additional information see: INSTALLING CAVITY SEALING (NOT EXPANDED) REP-REP-RAGRP41-4107102 - V.4 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Apply sealant to new cavity sealing. Install cavity sealing (1).
CONSUMABLE DESCRIPTION
| Sealant D2 | 290 ml | 83425A547B9 |
