Remove Outer Wheel Arch Section With Reinforcement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

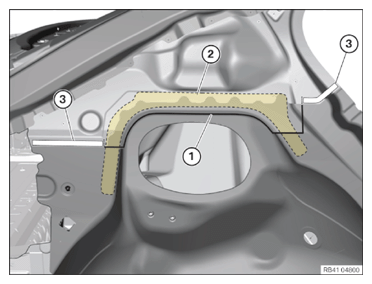

- Remove cavity sealing (1).
- Carry out separating cuts (2) and (3) as shown.
- Release welded connections in areas (4).

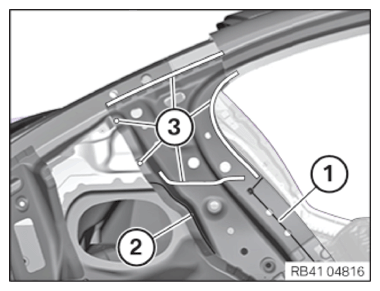

- Carry out separating cuts (1) and (2) as shown.
- Loosen welded connections in areas (3).
- Remove reinforcement on C pillar.

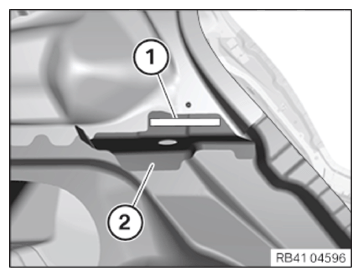

- Open welded connections in area (1).
- Remove the C-pillar insert (2).

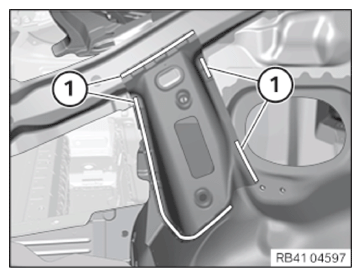

- Open the welded connections in the area (1) and remove the C-pillar tie rod.

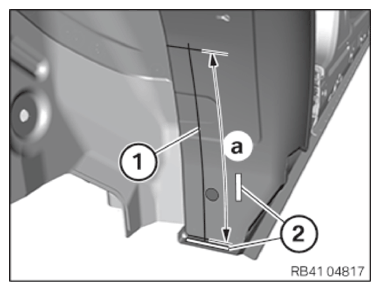

- Mark the severance cut (1) in accordance with dimension and cut.
Dimension a = 280 mm.
- Release welded connections in areas (2).

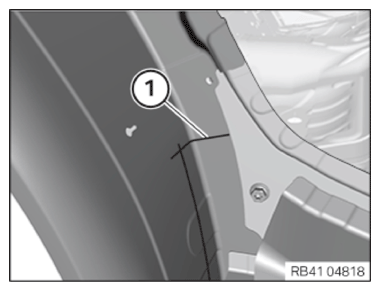

- Continue the separating cut (1) from the previous operation as shown.

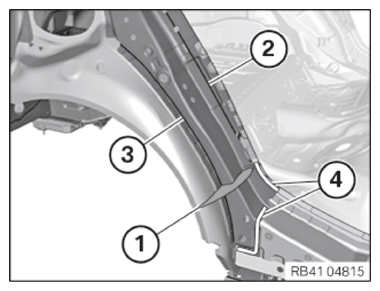

- Mark severance cut (1) according to schematic diagram and disconnect.
Do not damage the underlying bonded connection (2) in the process.
Separate only the outer panel!
- Open the welded connections in the areas (3) from the inside.

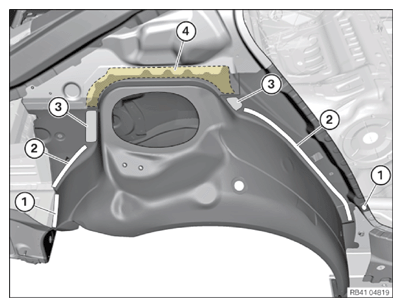

- Release the welded connection in areas (1).NOTE: TECHNICAL INFORMATION
For additional information see: OPENING BONDED CONNECTIONS REP-ALG-RAGRP41-4105702 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Open spot-welded adhesive joints in areas (2).
- Loosen the bonded rivet connection joints in the areas (3).
When opening the bonded rivet connections, do not damage the rivet connections in the area (4) in the process.
- Remove outer section of wheel arch.
