Remove Outer Wheel Arch Section With Reinforcement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Remove cavity sealing (1).

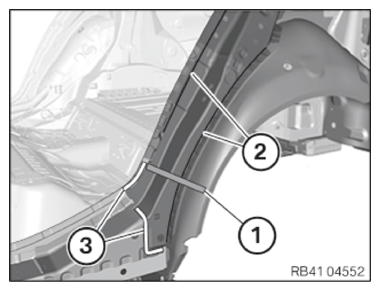

- Carry out separating cuts (2) as shown.
- Loosen welded connections in areas (3).

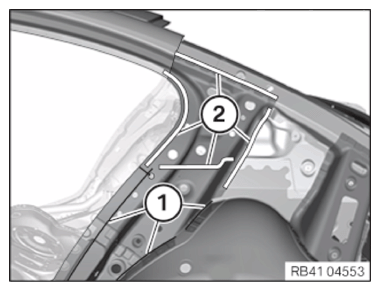

- Carry out separating cuts (1) as shown.
- Release welded connections in areas (2).
- Remove the C-pillar support and C-pillar reinforcement.

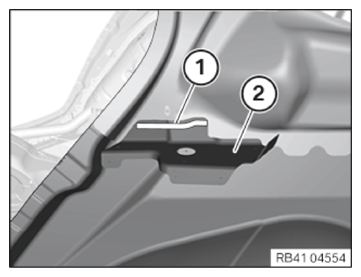

- Open welded connections in area (1).
- Remove the C-pillar insert (2).

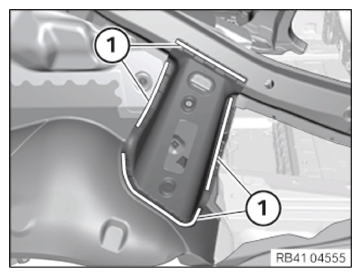

- Open the welded connections in the areas (1) and remove the C-post tie rod.

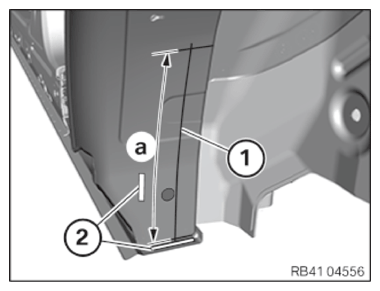

- Mark and make the separating cut (1) according to dimension a.
Dimension a = 280 mm.
- Release welded connections in areas (2).

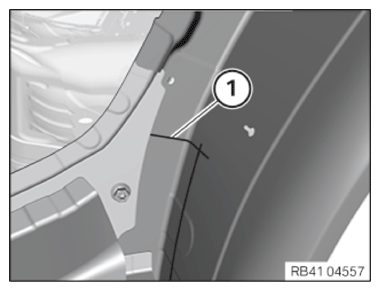

- Continue the separating cut (1) from the previous operation as shown.

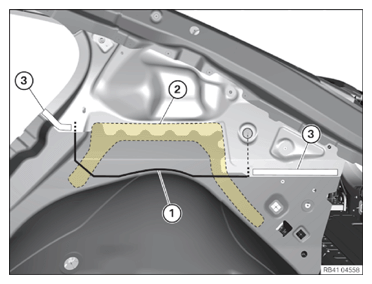

- Mark severance cut (1) according to schematic diagram and disconnect. Do not damage the underlying bonded rivet connection (2) in the process.
Separate only the outer panel!
- Open the welded connections in the areas (3) from the inside.

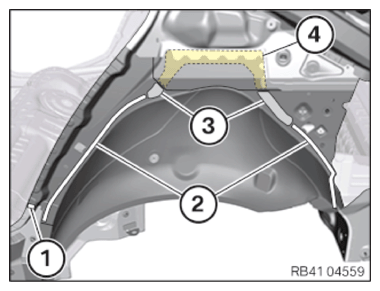

- Open the welded connection in the area (1).NOTE: TECHNICAL INFORMATION
For additional information see: OPENING BONDED CONNECTIONS REP-ALG-RAGRP41-4105702 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Open spot-welded adhesive joints in areas (2).
- Loosen the bonded rivet connection joints in the areas (3). While doing so, do not damage the adjacent bonded rivet connections in the area (4).
- Remove outer section of wheel arch.
