Install Outer Wheel Arch Section With Reinforcement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: WORKSHOP EQUIPMENT (BMW AND MINI VEHICLES) REP-ALG-RAGRP41-4101300 - V.12 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
Use only approved spot welder for repair.
For additional information see: WORKSHOP EQUIPMENT (BMW AND MINI VEHICLES) REP-ALG-RAGRP41-4101300 - V.12 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .

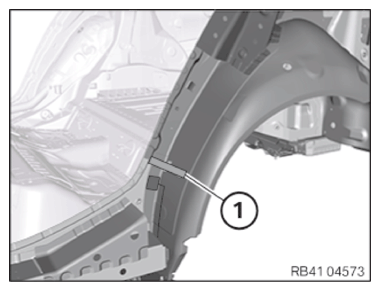

- Pre-clean the bonding surfaces (1) on the new part and on the vehicle with cleaning agent R2.CONSUMABLE DESCRIPTION
Cleaning agent R2 500 ml 83190417324 - (1) Clean bonding surfaces on vehicle and on new part with cleaning agent R1.CONSUMABLE DESCRIPTION
Cleaning agent R1 100 ml, Bottle 83192211217 - Apply adhesive K1 to the bonding surfaces (1).ADHESIVE DESCRIPTION

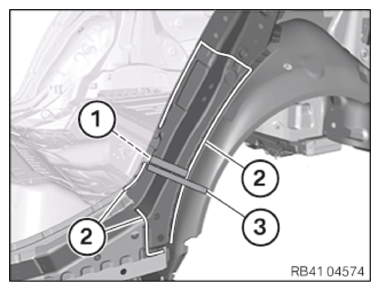

Body adhesive K1 195 ml 83190413015 - Install new part outer wheel arch section in the areas (1) using blind rivet N1.CONSUMABLE DESCRIPTION
Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm83190301414 - Weld the new part in areas (2).

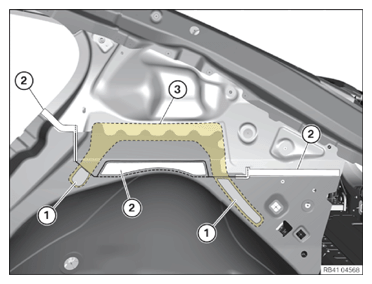

- Avoid excessive application of heat to adhesive areas (1) and (3).

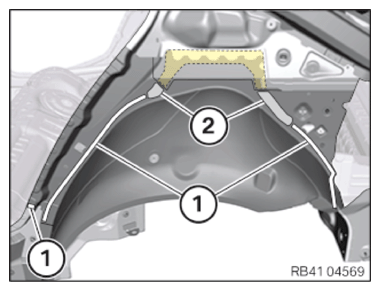

- Weld the new part in areas (1) according to the new part preparation process. Avoid excessive application of heat to bonded rivet areas (2).

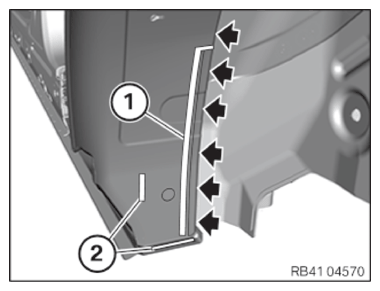

- Weld the new part in the areas (1) and (2). Avoid excessive application of heat to adhesive area (arrows).

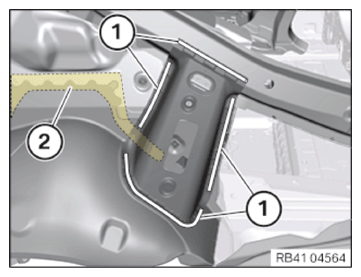

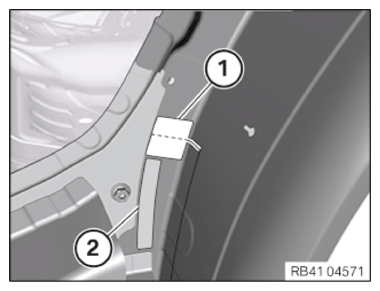

- Weld the new part and the reinforcement plate in the area (1). Avoid excessive application of heat to adhesive area (2).
- Install the new part luggage strap and weld it in the areas (1). Avoid excessive application of heat to bonded rivet areas (2).

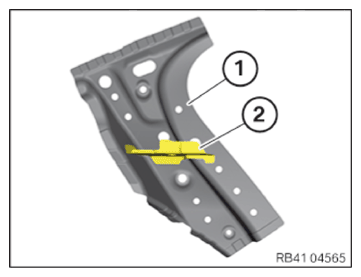

- Weld the new parts C-pillar reinforcement (1) and C-pillar insert (2).

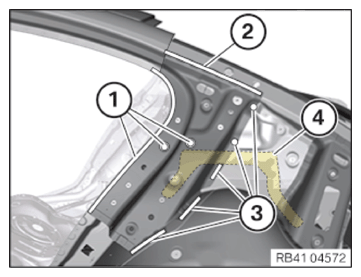

- Install the new part C-pillar reinforcement and weld it in the areas (3) to (1). Avoid excessive application of heat to bonded rivet areas (4).NOTE: TECHNICAL INFORMATION
For additional information see: INSTALLING CAVITY SEALING (NOT EXPANDED) REP-REP-RAGRP41-4107102 - V.4 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Apply sealant to cavity sealing (1) and install cavity sealing.
- Apply sealant to the inner cavity sealing (1).
- Install the new part C-pillar support and weld in the areas (2).
- Apply sealant to the outer cavity sealing (3) and install the cavity sealing.
