Remove Luggage Space Tray And Left Side Rail
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

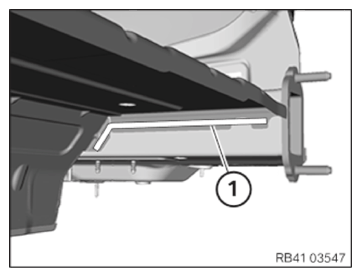

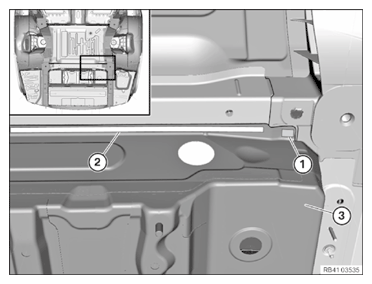

- Open welded connections in area (1).NOTE: TECHNICAL INFORMATION

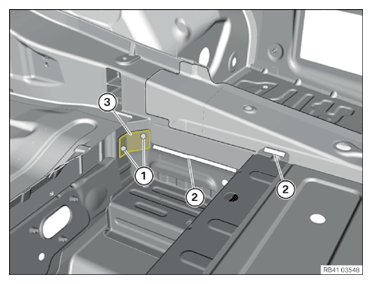

For additional information see: OPENING BONDED CONNECTIONS REP-ALG-RAGRP41-4105702 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Undo self-tapping screws (1).
- Release welded connections in areas (2).
- Release bonded connection in area (3).
- Undo self-tapping screws (1).
- Open welded connections in area (2).
- Release bonded connection in area (3).

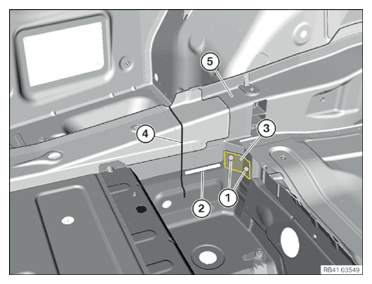

- Mark severance cut (4) according to schematic diagram and disconnect. Do not damage the (5) aluminum side member.
- Open welded connections in area (1).
- Mark severance cut (2) according to schematic diagram and disconnect. Cut through side rail completely.NOTE: TECHNICAL INFORMATION

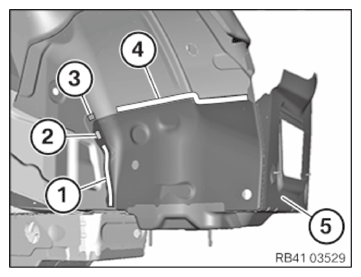

For additional information see: OPEN RIVET CONNECTORS REP-ALG-RAGRP41-4105306 - V.4 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Loosen self-tapping screws and bonded connection in area (1).
- Release the bonded rivet connection in area (2).
- Release the welded connection in area (3) from the inside.
- Open welded connections in area (4) and remove the support (5).NOTE: Perform the steps on the left and right side.

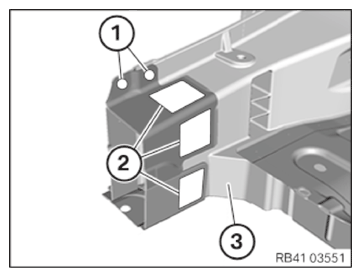

- Release the self-tapping screw and bonded connection in the area (1).
- Release welded connections in areas (2).
- (3) Remove luggage compartment floor.
- Release adhesive compounds in the areas (1) and (2). Do not damage the (3) aluminum side member.

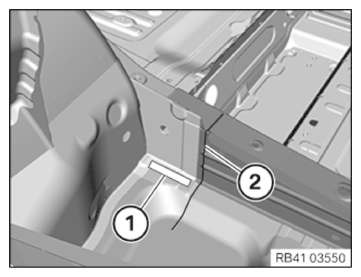

- Release the bonded rivet connection in area (1). Do not damage the (2) aluminum side member.

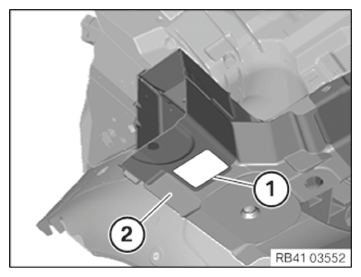

- Release the bonded rivet connection in area (1).
- Remove side rail support section (2).
