Installing The Rear Luggage Compartment Floor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Precondition

Bonding surfaces are cleaned.

NOTE: TECHNICAL INFORMATION
When installing the new part, make sure that all bonding surfaces have sufficient adhesive.

Apply adhesive K5 to the bonding surfaces.
ADHESIVE DESCRIPTION

Body adhesive K5 50 ml 83192158654
Install new part.

Courtesy of BMW OF NORTH AMERICA, INC.
Set blind rivets N3 in area (1).

CONSUMABLE DESCRIPTION

Blind rivet N3
Ø 4 mm; clamping area 1-3 mm

83190301421

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw

Drill a hole with a diameter of 4.2 mm.
In the case of glued connections, only drill the hole after the adhesive has fully hardened.
Screw in the EMC screw.
CONSUMABLE DESCRIPTION

EMC screw SF Plus M5x15 83190301639
Seal the EMC screw with the sealant.
CONSUMABLE DESCRIPTION

Sealant D1 (seam sealing) 310 ml 83422409985

NOTE: Perform the steps on the left and right side.

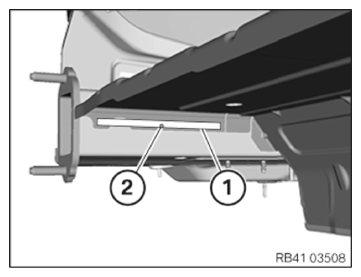

Set blind rivets in area (1).
Once the adhesive has hardened, install 1 x EMC screw in the area marked (2).
CONSUMABLE DESCRIPTION

screw
EMC screw, SF Plus, M5x15 83190301639

Courtesy of BMW OF NORTH AMERICA, INC.
