Install Center Luggage Compartment Floor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the left and right side.

Pre-clean the bonding surface (1) on the vehicle and on the new part with solvent cleaner R2.
CONSUMABLE DESCRIPTION

Cleaning agent R2 500 ml 83190417324
Clean the bonding surface (1) on the vehicle and on the new part with solvent cleaner R1.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE DESCRIPTION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K1 in area (1) on the new part and the vehicle.
ADHESIVE DESCRIPTION

Body adhesive K1 195 ml 83190413015
Pre-clean the bonding surface (1) on the vehicle and on the new part with solvent cleaner R2.
CONSUMABLE DESCRIPTION

Cleaning agent R2 500 ml 83190417324
Clean the bonding surface (1) on the vehicle and on the new part with solvent cleaner R1.
CONSUMABLE DESCRIPTION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K1 in area (1) on the new part and the vehicle.
ADHESIVE DESCRIPTION

Body adhesive K1 195 ml 83190413015

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
When installing the new part, make sure that all bonding surfaces have sufficient adhesive.

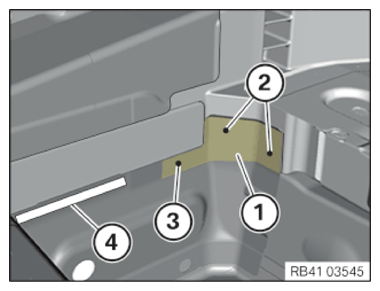

Install the new parts and rivet them with blind rivets N1 (2) and blind rivets N2 (3).
CONSUMABLE DESCRIPTION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE DESCRIPTION

Blind rivet N2
Ø 6.5 mm; clamping area 4.8-6.8 mm 83190301419
Weld the new part in the area (4).
Rivet the new part in area (1) with blind rivets N1 (2) and blind rivets N2 (3).
CONSUMABLE DESCRIPTION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414

CONSUMABLE DESCRIPTION

Blind rivet N2
Ø 6.5 mm; clamping area 4.8-6.8 mm 83190301419
Weld the new part in the area (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Weld the new part in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Weld the new part in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Weld the new part in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Weld new parts in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Weld the new part in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
