Removing The Left Luggage Compartment Floor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
For additional information see: OPENING BONDED CONNECTIONS REP-ALG-RAGRP41-4105702 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
For additional information see: OPENING BONDED CONNECTIONS REP-ALG-RAGRP41-4105702 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .

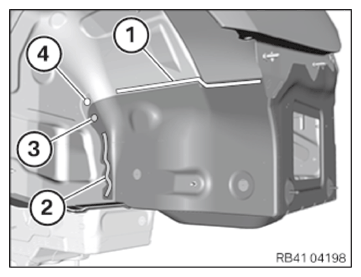

- Open welded connections in area (1).
- Loosen self-tapping screws and bonded connection in the area (2).
- Release the bonded rivet connection in area (3).
- Release the welded connection in area (4) from the inside.
- Open welded connections in area (1).NOTE: To provide a better overview: Shown without side panel.
- Release the spot-welded adhesive joints in area (1).
- Release the bonded rivet connection in area (2) and remove the luggage compartment floor.
