Prepare new part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Mark severance cuts on new part in accordance with severance cuts on vehicle and cut.NOTE: TECHNICAL INFORMATION

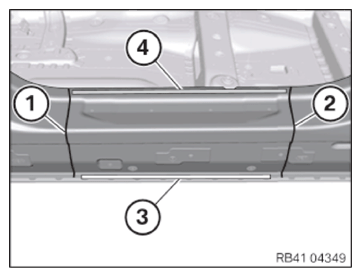

For additional information see: WELDING IN REINFORCEMENT PLATE (SHEET STEEL) REP-REP-RAGRP41-4105801 - V.5 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Prepare reinforcement plates at separating cuts (1) and (2).
- Prepare for joining by welding in areas (3) and (4).NOTE: TECHNICAL INFORMATION
For additional information see: SPOT-WELD BONDING STEEL COMPONENTS REP-ALG-RAGRP41-4105701 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - In area (4), observe the procedure for the replacement of spot-welded adhesive joints for the series.
