Supplying The New Parts Required
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: REPAIR TECHNIQUES, REPAIR STAGE 3 REP-ALG-RAGRP41-410000A_REPSTUFE_3 - V.5 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
Preliminary work
Follow-up work
- Prepare the following new parts (see Electronic Parts Catalog [EPC]):

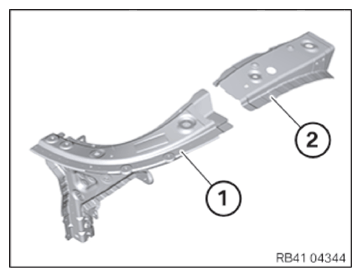

Inner wheel arch section carrier support (1)
Carrier support, wheel arch, front (2)
Support bracket shaped part
NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) REP-ALG-RAGRP41-4103211 - V.30 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Supply the following consumables:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivet N1 | 19 |
| Blind rivet N3 | 3 |
| Blind rivet N6 | 1 |
| EMC screw | 1 |
| Cleaning agent R1 | 1 |
| Cleaning agent R2 | 1 |
| Sealing compound D1 | |
| Cavity protection wax remover |
