Remove Carrier Support
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Release the self-tapping screws in the areas (1).NOTE: TECHNICAL INFORMATION
For additional information see: OPENING BONDED CONNECTIONS REP-ALG-RAGRP41-4105702 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Heat and release the bonded connection in the areas (1).
Do not damage the aluminum engine mount in the process!

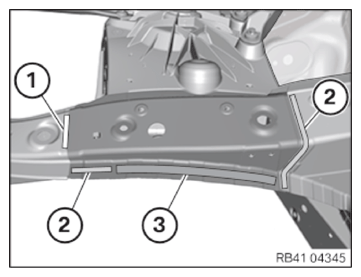

- Open welded connections in areas (1) and (2).NOTE: TECHNICAL INFORMATION
For additional information see: OPEN RIVET CONNECTORS REP-ALG-RAGRP41-4105306 - V.4 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Release the rivet connectors in the area (3). Do not damage the aluminum shock tower!

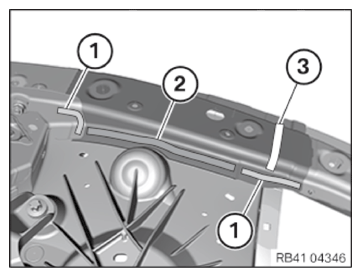

- Release the bonded connections in the areas (2) and (3). Do not damage the aluminum shock tower!

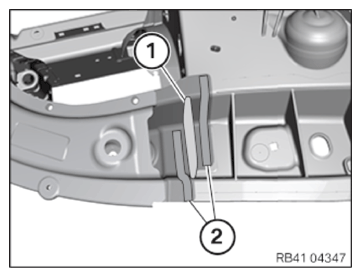

- Release welded connections in areas (1).
- Release the rivet connectors in the area (2). Do not damage the aluminum shock tower!
- Heat and release the bonded connections in the areas (1) and (2). Do not damage the aluminum shock tower!
- Release the carrier support from the cavity sealing (3) and remove.
- Remove cavity sealing (1).
- Release the rivet connectors in the areas (2). Do not damage the aluminum shock tower!
- Heat and release the bonded connections in the areas (2). Do not damage the aluminum shock tower!
- Remove the carrier support.
