Install Carrier Support

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
CONSUMABLE DESCRIPTION

Cleaning agent R2 500 ml 83190417324
Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE DESCRIPTION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K1 to the bonding surfaces.
ADHESIVE DESCRIPTION

Body adhesive K1 195 ml 83190413015
Install the new parts with an alignment bracket or a universal mount.

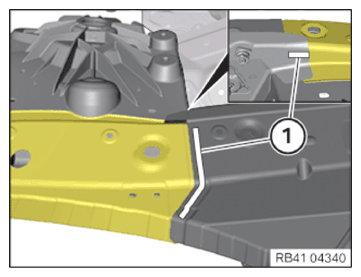

Rivet the new part in area (1) with blind rivets N1.
CONSUMABLE DESCRIPTION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414

Courtesy of BMW OF NORTH AMERICA, INC.

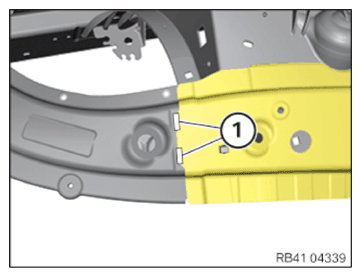

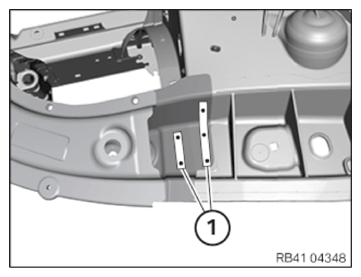

Rivet new parts in the areas (1) with blind rivets N1.
CONSUMABLE DESCRIPTION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Installation of a cavity sealing (not expanding)

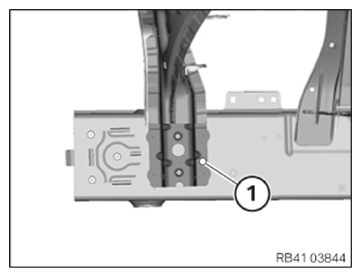

Apply sealant D1 to the new cavity sealing (1).
CONSUMABLE DESCRIPTION

Sealant D1 (seam sealing) 310 ml 83422409985

Courtesy of BMW OF NORTH AMERICA, INC.

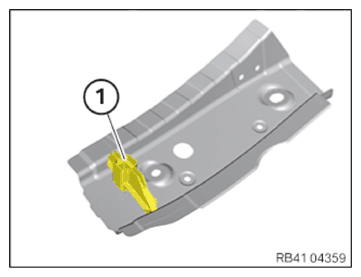

Install cavity sealing (1) in the new part.
Apply sealant D1 to cavity sealing (1).
Install the carrier support for the new part.

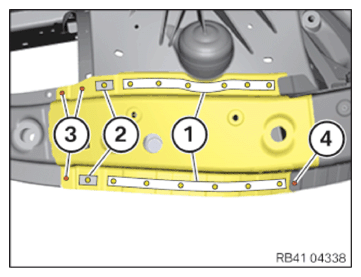

Rivet the new parts in the areas (1) and (2) with blind rivets N1.
CONSUMABLE DESCRIPTION

Blind rivet N1
Ø 6.5 mm; clamping area 2.8-4.8 mm 83190301414

Courtesy of BMW OF NORTH AMERICA, INC.
Rivet the new parts in the areas (3) with blind rivets N3.
CONSUMABLE DESCRIPTION

Blind rivet N3
Ø 4 mm; clamping area 1-3 mm 83190301421
In the area (4), use a bind rivet N6.
CONSUMABLE DESCRIPTION

Blind rivet N6
Ø 4 mm; clamping area 3-5 mm 83192158655
Weld the new parts in areas (1) according to the new part preparation process.
Avoid excessive application of heat to adhesive areas.

Courtesy of BMW OF NORTH AMERICA, INC.
Weld the new part in areas (1) according to the new part preparation process.

Avoid excessive application of heat to adhesive areas.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw

Drill a hole with a diameter of 4.2 mm.
In the case of glued connections, only drill the hole after the adhesive has fully hardened.
Screw in the EMC screw.
CONSUMABLE DESCRIPTION

EMC screw SF Plus M5x15 83190301639
Seal the EMC screw with the sealant.
CONSUMABLE DESCRIPTION

Sealant D1 (seam sealing) 310 ml 83422409985
In area (1) 1, install the EMC screw.
CONSUMABLE DESCRIPTION

screw
EMC screw, SF Plus, M5x15 83190301639

Courtesy of BMW OF NORTH AMERICA, INC.
