Remove Engine Mount
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
For additional information see: OPEN RIVET CONNECTORS REP-ALG-RAGRP41-4105306 - V.4 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
For additional information see: OPEN RIVET CONNECTORS REP-ALG-RAGRP41-4105306 - V.4 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
- Release self-tapping screws in the areas (1) and (2).
Release the rivet connectors in the areas (3).
NOTE: TECHNICAL INFORMATION
For additional information see: OPENING BONDED CONNECTIONS REP-ALG-RAGRP41-4105702 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Heat and remove the bonded connections in areas (1) to (3). Do not damage aluminum spring support in the process!

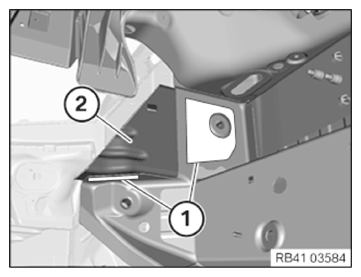

- Perform the separating cut (1) as shown. Do not damage aluminum spring support (2) in the process!
- Remove the engine mount section.
- Open welded connections in area (1).
- Release self-tapping screws in area (2).
- Heat and remove the bonded connections in area (2).
- Remove reinforcement (3).

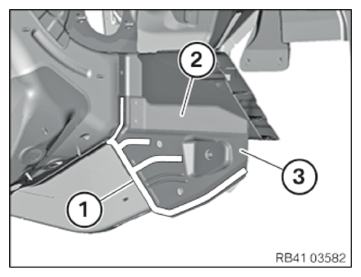

- Make separating cuts (1) as shown. Detach engine mount section-wise.

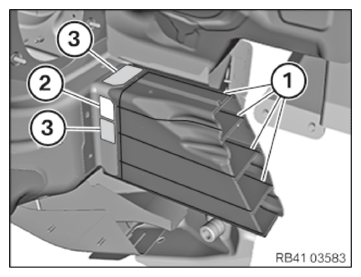

- Partially release the self-tapping screw in area (2) and rivet connectors in the areas (3) with a file belt sander.
- Heat and remove the bonded connection in areas (2) and (3).

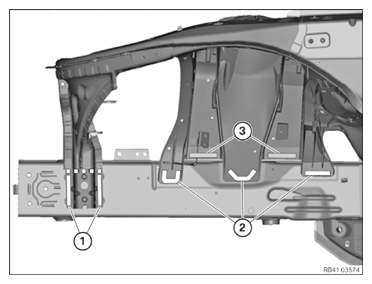

- Release self-tapping screws and rivet connectors in the areas (1).
- Heat and remove the bonded connections in areas (1) and remove the engine mount (2).
