Removing Engine Mount In Front Of Bulkhead With Wheel Arch
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
For additional information see: OPENING BONDED CONNECTIONS REP-ALG-RAGRP41-4105702 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
For additional information see: OPENING BONDED CONNECTIONS REP-ALG-RAGRP41-4105702 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .

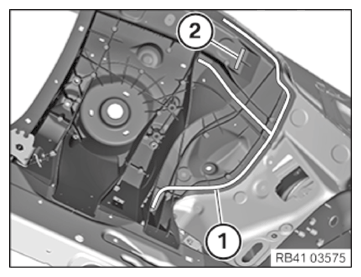

- Release bonded rivet connections in the areas (1) and (2).

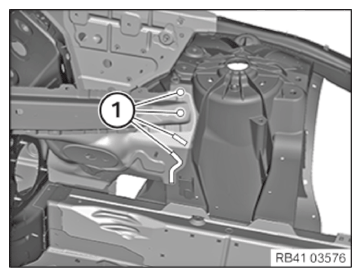

- Release the spot-welded adhesive joints in area (1).NOTE: TECHNICAL INFORMATION
For additional information see: OPEN RIVET CONNECTORS REP-ALG-RAGRP41-4105306 - V.4 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Release bonded rivet connections in the areas (1) and (2).

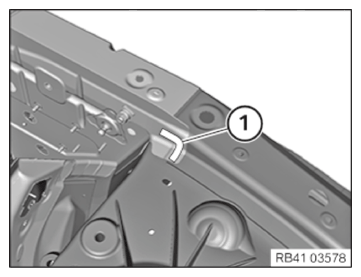

- Release bonded rivet connections in the areas (1).

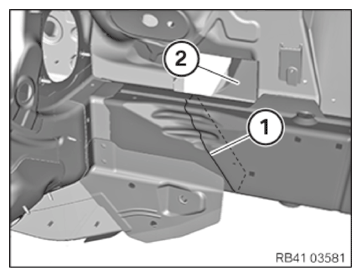

- Mark severance cut (1) according to schematic diagram and disconnect.
- Remove engine mount and wheel arch (2).

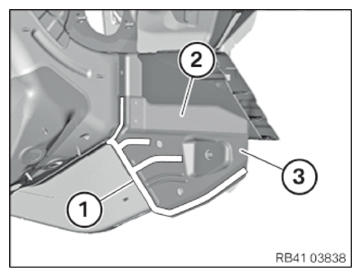

- Open welded connections in area (1).
- Unscrew the self-tapping screws and bonded connection in area (2).
- Remove reinforcement (3).

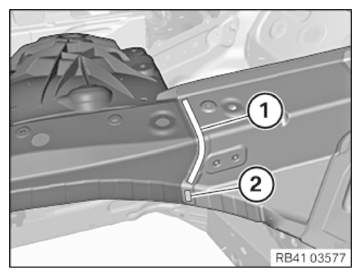

- (1) Mark severance cut () as pictured and cut. Detach the engine mount in sections.
- Unscrew the self-tapping screw and bonded connection in the area (2).

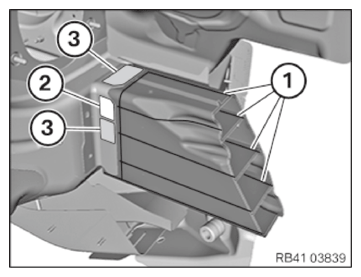

- Loosen the bonded rivet connections in the areas (3) partially with the belt sander.

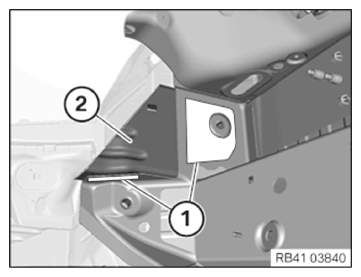

- Unscrew the self-tapping screws and bonded connections in the areas (1). Remove the engine mount (2).
