Install interior roof light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Check

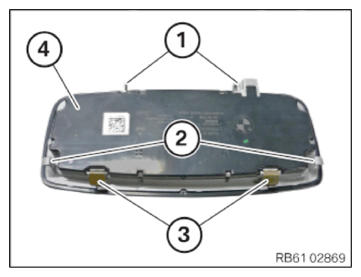

Check the guides (1), clamps (3) and detents (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The guides (1), clamps (3) and detents (2) are damaged.

Measure

Replace the interior roof light (4).

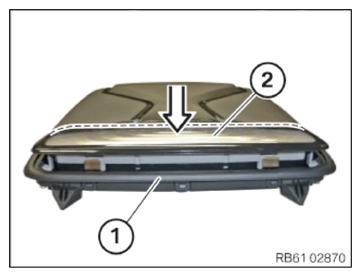

Insert the interior roof light (2) in the marked area.
Engage the interior roof light (2) in the frame (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
