Install the tail light on the trunk lid on the left
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

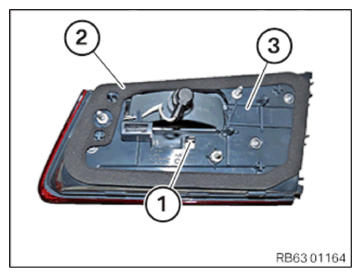

- Check the snap-in lug (1) at the tail light (3) for damage, replace if necessary.
- Replace the seal (2).
Parts: Gasket
- Position the tail light in the tailgate in such a way that the lock (3) snaps in.
- Tighten nuts (2).
TIGHTENING TORQUES SPECIFICATION
| Tail light at trunk lid | ||
|---|---|---|
| Nut M6 | Tightening Torque | 2.6 Nm |
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING THE TRIM ON THE TAIL LIGHT .
- Refer to INSTALLING THE TAILGATE TRIM PANEL .
- Refer to INSTALLING THE POWER TAILGATE SWITCH .
