Replacing the tail light at the side panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

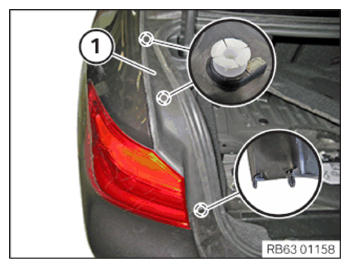

- Position the tail light (1).
Part: Tail lamp

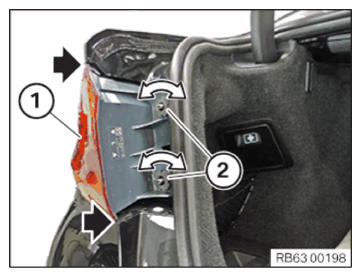

- Use the spacer bushings (2) to adjust the fit (arrows) of the tail light (1) in relation to the side panel and to the bumper.

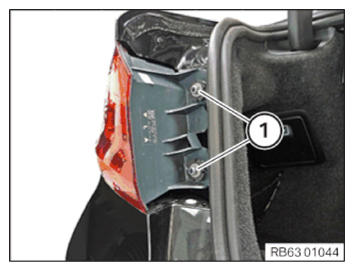

- Tighten the nuts (1) on the tail light.
TIGHTENING TORQUES SPECIFICATION
| Tail light to side panel | ||
|---|---|---|
| Nut M6 Replace nuts. |
Tightening Torque | 2.6 Nm |
- Connect plug (1).
- Tighten nut (2).
TIGHTENING TORQUES SPECIFICATION
| Tail light to side panel | ||
|---|---|---|
| Nut M6 Replace nuts. |
Tightening Torque | 2.6 Nm |
- Check the clips (1) and guides (2) on the water drain (3) for damage and replace as needed.
- Clip in the water drain (1).
- Remove the adhesive tape in area (1).
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL AT LEFT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
