Remounting LED module for daytime running lights

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the LED module for the daytime running lights

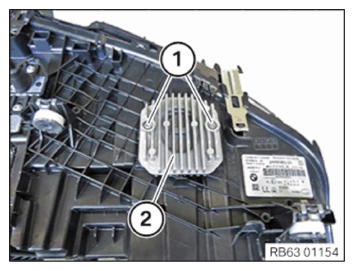

Loosen screws (1).
Pull LED module (2) out of headlight.

Courtesy of BMW OF NORTH AMERICA, INC.

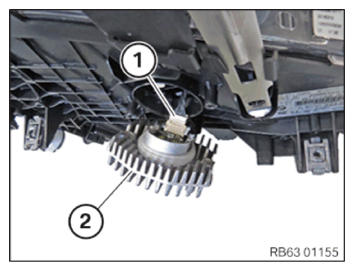

Unlock connector (1) at LED module (2) and disconnect it.
Remove the LED module (2).

Courtesy of BMW OF NORTH AMERICA, INC.

-->

Install the LED module for the daytime running lights

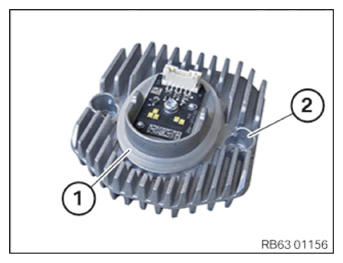

Check the seal (1) on the LED module (2) for damage and replace as needed.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connector (1) to LED module (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Position the LED module (2) in the headlight.
Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

LED module of daytime running lights
Screw	tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING HEADLIGHT .
Refer to INSTALLING BUMPER COVER, FRONT .
Refer to INSTALLING FRONT SECTION OF THE FRONT WHEEL ARCH COVER (PARTIALLY REMOVED) .
Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
Refer to PROCESSING THE LED HEADLIGHT SERVICE TEST MODULE .
Refer to ADJUSTING HEADLIGHTS .
