Remove headlight
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: 6310... TEST PREREQUISITE FOR THE HEADLIGHT ADJUSTMENT .
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: 6310... TEST PREREQUISITE FOR THE HEADLIGHT ADJUSTMENT .
Preliminary work
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON TOP .
- Refer to REMOVING FRONT ORNAMENTAL GRILLE .
- Refer to PARTIALLY REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to REMOVING FRONT BUMPER COVER .
- Protect the body in area (1) with adhesive tape.

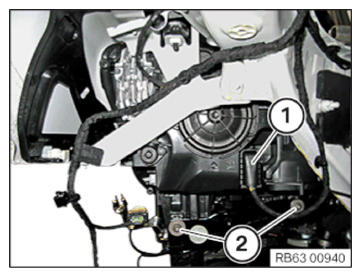

- Unlock and disconnect connector (1).
- Loosen screws (2).

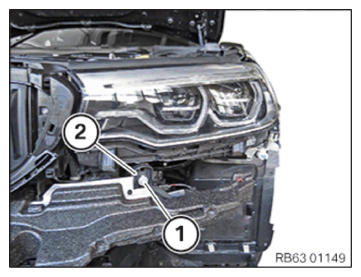

- Loosen screw (1).
- Remove holder (2).
- Loosen screw (1).
- Loosen screw (2).
- Lift the headlight (3) a little and feed out and remove towards the front.
