Install the LED module for the turn signal lamp

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

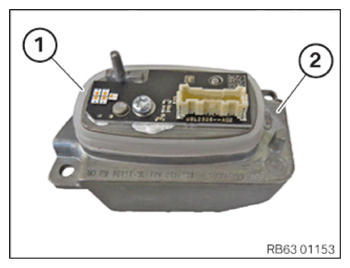

Check the seal (1) on the LED module (2) for damage and replace as needed.

Courtesy of BMW OF NORTH AMERICA, INC.

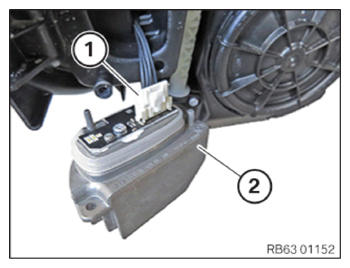

Connect connector (1) to LED module (2).

Courtesy of BMW OF NORTH AMERICA, INC.

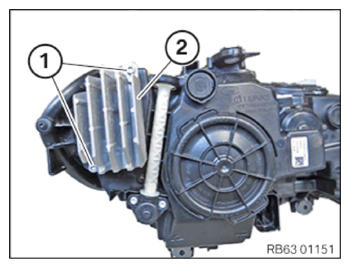

Position the LED module (2) in the headlight.
Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

LED module of turn signal lamp to headlamp
40x14 screw	Tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
