Remove accelerator pedal module
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

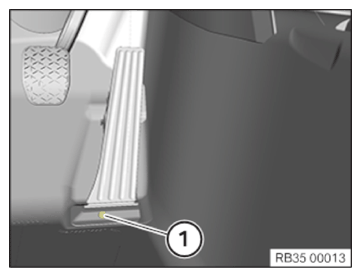

- Lever out cover (1) towards the top.

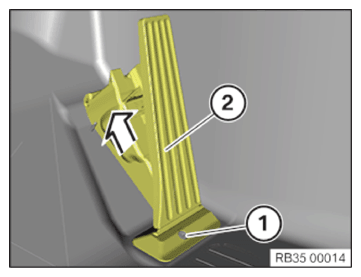

- Release the hexagon socket screw (1).
- Feed out accelerator pedal module (2) upwards (see the next step).

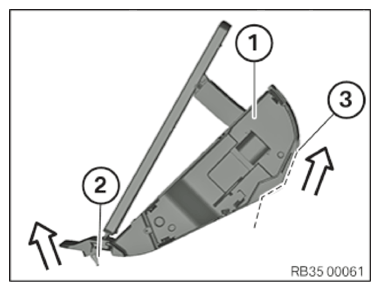

- Lift the accelerator pedal module (1) at the bottom approx. 2 cm to feed out from the holder (2).
- Slide the accelerator pedal module (1) out of the holder (3) in the arrow direction (diagonally upwards).
- Disconnect plug connection (1) and remove the accelerator pedal module.
