Install accelerator pedal module
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Connect connectors (1) and lock.
NOTE:
RISK OF DAMAGE
Damage to wiring harness
During the assembly of the accelerator pedal module, make sure that the cable is not pinched between the holder and the accelerator pedal module.
Damage to wiring harness
During the assembly of the accelerator pedal module, make sure that the cable is not pinched between the holder and the accelerator pedal module.
- Damaged wiring harness must be replaced.

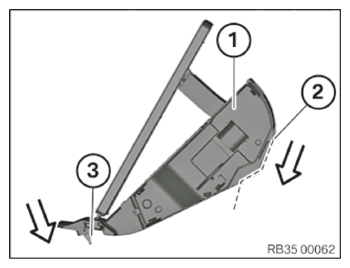

- Feed in the accelerator pedal module (1) into the holder (2) first at the top in the arrow direction.
- Then align in the holder (3) at the bottom.
There is a positioning pin on the accelerator pedal module at the bottom which allows for the correct alignment.
- Replace the hexagon socket screw (1).
Parts: Hexagon socket screw
- Fit the hexagon socket screw (1) and tighten.
TIGHTENING TORQUES SPECIFICATION
| Accelerator pedal module to body | ||
| M6 Replace screw. | tightening torque | 8 Nm |
