Installing the control unit for self-locking differential
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

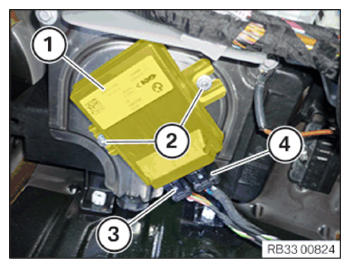

- Position control unit (1) .
- Tighten nuts (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Self-locking differential control unit on bracket | ||
| M6 | Tightening torque | 8 Nm |
- Connect connectors (3) and (4) and lock.

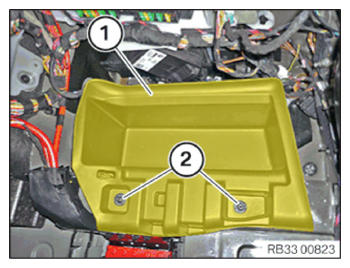

- Position storage compartment (1) .
- Tighten nuts (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Shelf on body | ||
| Plastic nut | Tightening torque | 3 Nm |
Follow-up work
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALLING RIGHT BACKREST SIDE SECTION .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
- Refer to IF PROGRAMMING/CODING HAS FAILED: READING DATA FROM REAR AXLE DIFFERENTIAL .
- Refer to WHEN REPLACING (CONTROL UNIT): PERFORMING SERVICE FUNCTION "SELF-LOCKING DIFFERENTIAL CONTROL UNIT REPLACEMENT" .
