Remove the control link
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly. Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISING THE VEHICLE USING A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
Preliminary work
- Refer to REMOVING THE WHEEL .
- Refer to REMOVING THE COVER OF THE CAMBER CONTROL ARM .

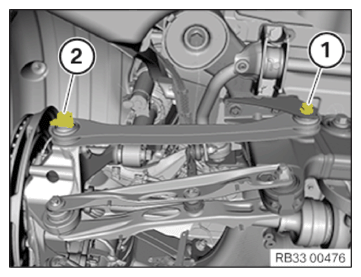

- Loosen screws (1) and (2).

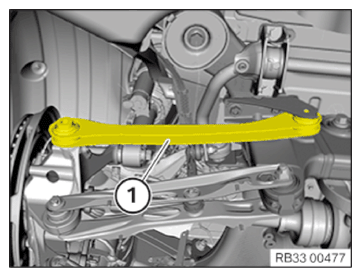

- Remove the control link (1).
