Remove top wishbone

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Perform wheel alignment after installation.

Preliminary work

Refer to REMOVING THE WHEEL .
Refer to REMOVING THE COVER OF THE CAMBER CONTROL ARM .

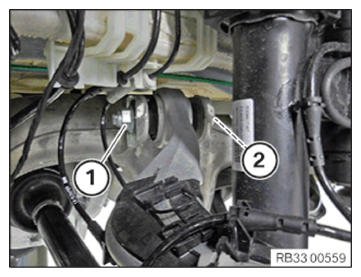

Loosen nut (1).
Remove the eccentric washer.
Pull out screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

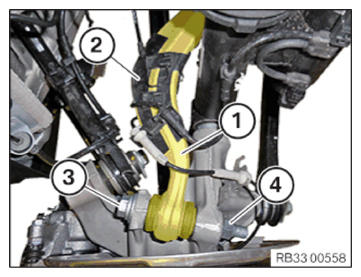

Loosen the cable clip (2).
Release the nut (4).
Pull out screw (3).
Remove top wishbone (1).

Courtesy of BMW OF NORTH AMERICA, INC.
