Remove trailing arm

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Perform wheel alignment after installation.

Preliminary work

Refer to REMOVING THE WHEEL .

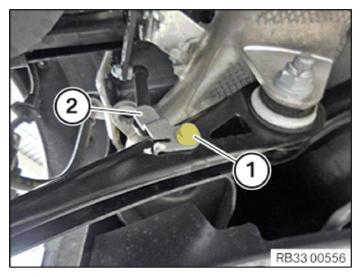

Loosen screw (1).
Release the attachment rod (2) of the ride height sensor from the trailing arm.

Courtesy of BMW OF NORTH AMERICA, INC.

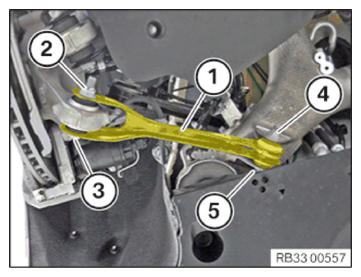

Loosen nuts (2) and (4).
Pull out screws (3) and (5).
Remove the trailing arm (1).

Courtesy of BMW OF NORTH AMERICA, INC.
