Securing rear axle
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.

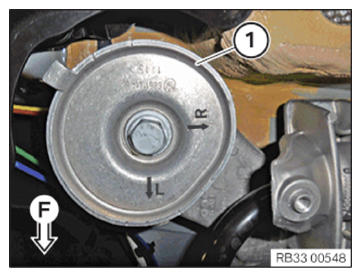

- Position thrust washer on rear rubber mount of the rear axle support.
Thrust washer left = arrow L in direction of travel
Thrust washer right = arrow R in direction of travel
- Tighten down screw.
TIGHTENING TORQUE SPECIFICATIONS
| Rear axle carrier to body | ||
| M14 Replace screw. | tightening torque | 185 Nm |
Install thrust arm
- Replace screws (1)
and (2)
.
Parts: Screws
- Position thrust arm (3) .
- Tighten down screws (1) and (2) hand force.
- Tighten down screw (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Rear axle carrier to body | ||
| M14 Replace screw. | tightening torque | 185 Nm |
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Thrust arm on body | ||
| M10 Replace screws. | Joining torque Angle of rotation |
56 Nm 45° |
- Release the special tool 0 496 080 (33 5 206) from the rear axle support.
- Lower the workshop jack and place to one side.
Follow-up work
- Refer to SECURING THE WIRING HARNESS FOR THE REAR AXLE DIFFERENTIAL .
- Refer to SECURING CABLES ON RIGHT AND LEFT .
- Refer to CONNECTING THE CONNECTOR TO THE REAR RIDE HEIGHT SENSOR .
- Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
- Refer to INSTALLING THE HEAT SHIELD AT THE REAR .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE REAR TUNNEL CONNECTING SUPPORT .
- Refer to INSTALLING THE REINFORCEMENT STRUT .
- Refer to INSTALLING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to INSTALLING THE UNDERSHIELD ON THE LEFT FUEL TANK .
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
- Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
