Detaching rear axle
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.
Remove thrust arm
NOTE:
RISK OF DAMAGE
Damage to components on the rear axle.
Removing both thrust arms simultaneously may lead to serious damage to the rear axle.
Damage to components on the rear axle.
Removing both thrust arms simultaneously may lead to serious damage to the rear axle.
- Only remove or replace thrust arms individually.
- When lowering or removing the rear axle: Support the rear axle support before both thrust arms are removed.
- Loosen screws (1) .
- Loosen screw (2) .
- Remove thrust arm (3) .

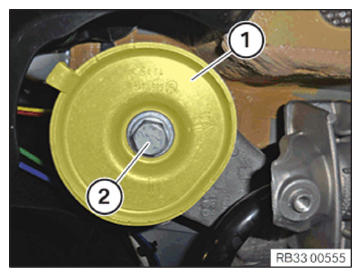

- Loosen screw (2) .
- Remove thrust washer (1) .
