Installing the front lower strap
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength.
The screw connection must be completed within 10 minutes as hardening begins after this period.
Clean all threaded belt connections with micro-encapsulated outer and internal threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength.
The screw connection must be completed within 10 minutes as hardening begins after this period.

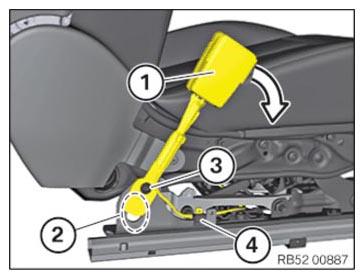

- Feed in lower strap (1) in area (2) and fold it forwards.
- Attach the cable clip (4).
- Tighten down screw (3).TIGHTENING TORQUES SPECIFICATION
Lower strap to seat mechanism M6 Tightening torque 8 Nm - Feed in cable (2).
- Secure the cable clips (1).
- Clip the connector (2) into the connector housing (1).
- Fasten connector housing (1).
Follow-up work
- Refer to INSTALLING FRONT SEAT .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
