Install the DSC control unit
WARNING: This page is about a different car, the 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, 2019 BMW M5, and 2018 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Maintain conditions of absolute cleanliness.
Maintain conditions of absolute cleanliness.

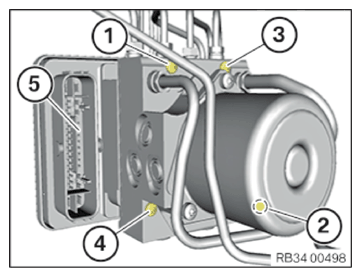

- Carefully attach the DSC control unit (5) to the hydraulic unit.
- Replace screws (1)
to (4)
.
Parts: Screws
- Tighten the screws (1) to (4) step by step in this sequence.
TIGHTENING TORQUE SPECIFICATIONS
| DSC control unit on hydraulic unit | ||
| Screw Replace screws. Screw in screws and evenly tighten crosswise. |
1. tightening torque 2. tightening torque Position the 3rd tightening torque |
1.5 Nm 2.5 Nm 3.5 Nm |
Follow-up work
- Refer to INSTALLING HYDRAULIC UNIT .
- Refer to INSTALLING THE UNDERSHIELD ON THE SIDES .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to CLEANING THE CONTACT SURFACES BETWEEN THE BRAKE DISC AND THE WHEEL RIM .
- Refer to ATTACHING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE BRAKE PEDAL TENSIONER .
- Refer to CONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
- Refer to FLUSHING AND VENTING THE REAR AXLE BRAKE CIRCUIT .
- Refer to FLUSHING AND BLEEDING THE FRONT AXLE BRAKE CIRCUIT (BRAKE HIGH) .
- Refer to DISCONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
- Refer to DSC UNIT START-UP/DRIVING DYNAMICS SENSOR ADJUSTMENT/CONTROL UNIT PROGRAMMING .
