Check the plug connection of the DSC control unit
WARNING: This page is about a different car, the 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, 2019 BMW M5, and 2018 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Do not interchange brake lines. If necessary, mark the brake lines before disassembly.
Note various equipment specifications with different line seizure.
Do not bend brake lines.
Close off connecting bores with seal plugs.
Do not interchange brake lines. If necessary, mark the brake lines before disassembly.
Note various equipment specifications with different line seizure.
Do not bend brake lines.
Close off connecting bores with seal plugs.
Preliminary work
- Refer to INSTALLING BRAKE PEDAL TENSIONER .
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .
- Refer to REMOVING SIDE UNDERBODY PLANKING .
- Refer to REMOVING HYDRAULIC UNIT .
Check

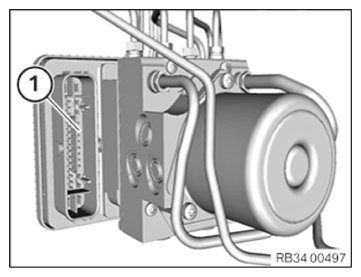

- Check plug connection (1) for damage.
Result
» The plug connection (1) is faulty.
Measure
- Replace DSC control unit.
Parts: DSC control unit
