Trailing Arm: Installation

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse removal procedure. Damaged threads in bushings on body side can be repaired with Helicoil thread inserts. These inserts must be fitted flush with the original thread. Replace self-locking fasteners and tighten to specification. See TORQUE SPECIFICATIONS .

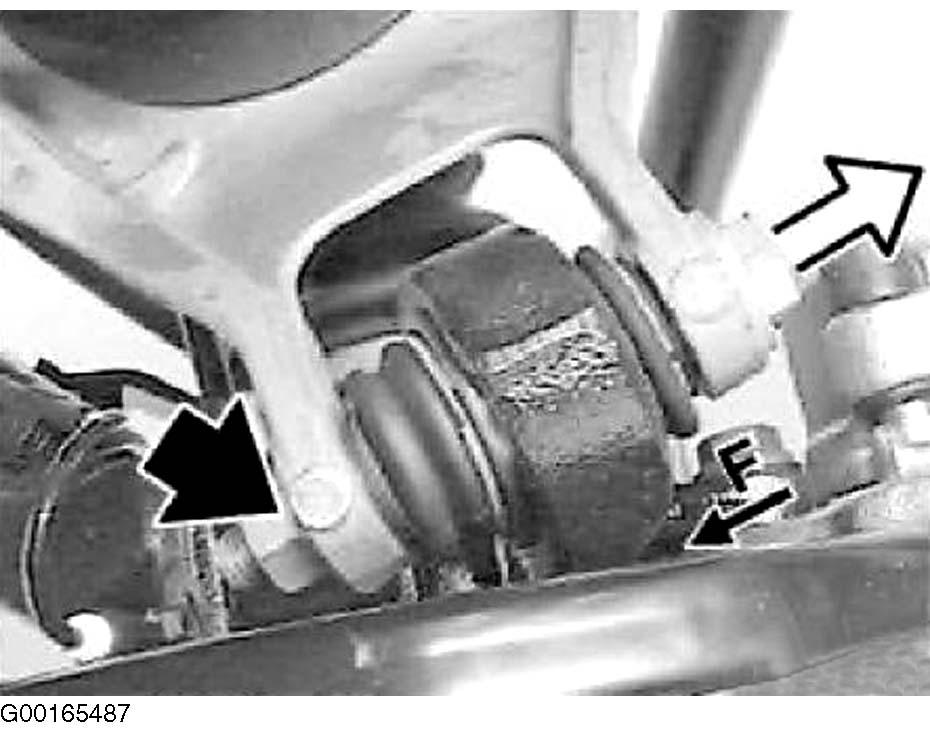

  2. When installing control arm to trailing arm bolt, note direction of travel (F). See Figure.
  3. When installing eccentric bolt on trailing arm, note insertion direction of bolt. F is direction of travel. See Figure. Tighten bolt to specification. See TORQUE SPECIFICATIONS .
  4. Perform wheel alignment check. See WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES  under ADJUSTMENTS.
