Lower Control Arm Rubber Mount To Trailing Arm: Removal
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.
- Remove wheel.

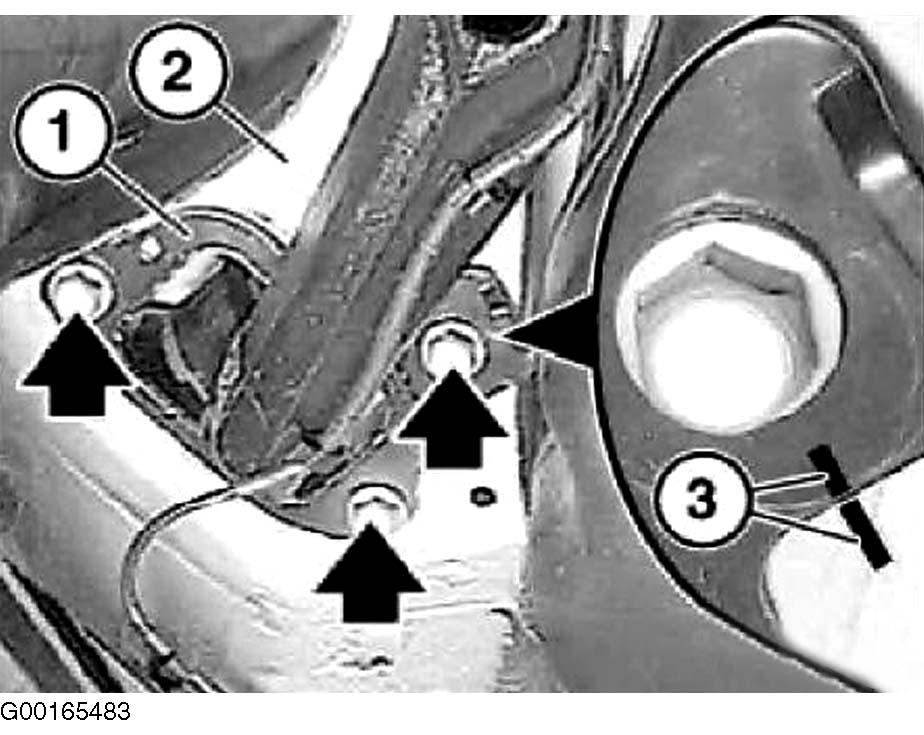

- Support trailing arm from underneath using a workshop jack. Mark position of eccentric bolt (1) to control arm with center marks (2). This simplifies subsequent camber adjustment. See Figure.

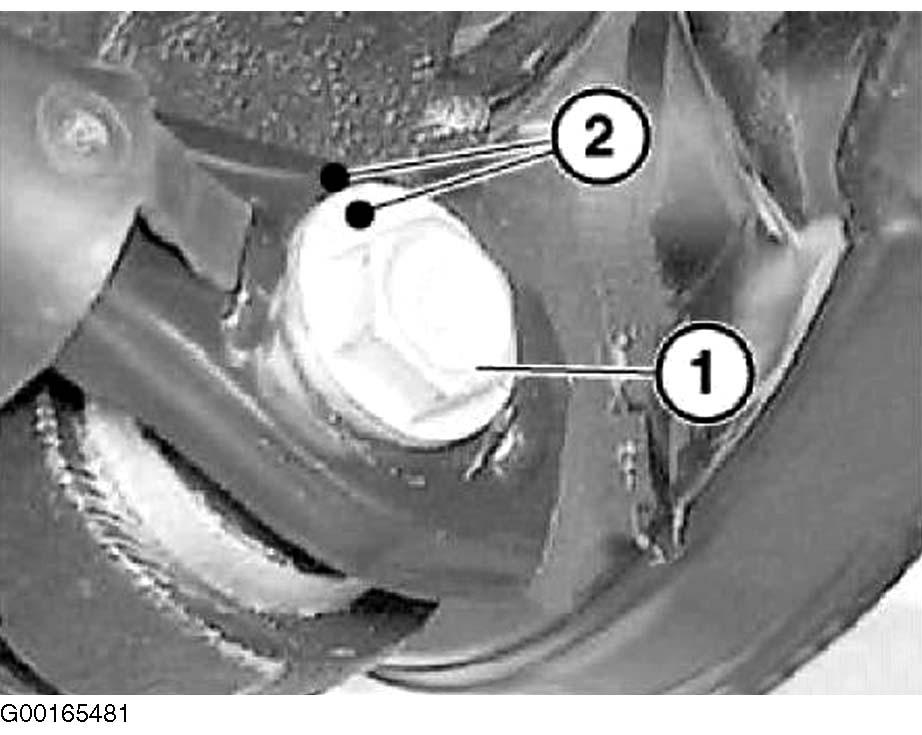

- Release nut (1) on trailing arm and remove eccentric bolt. See Figure.

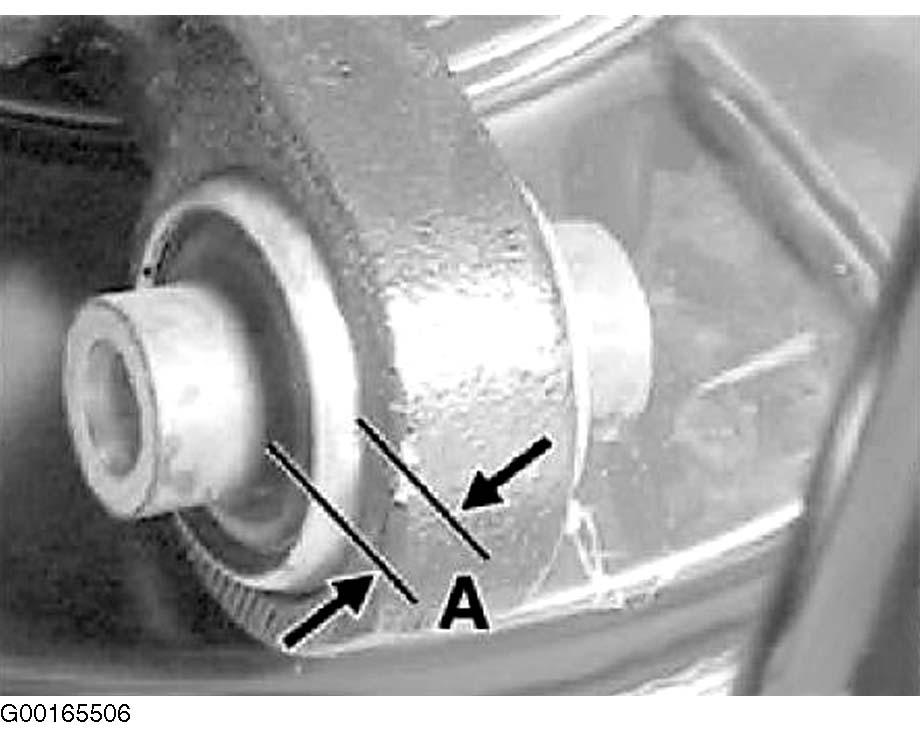

- Measure and note protrusion (A) of old rubber mount. See Fig 1.

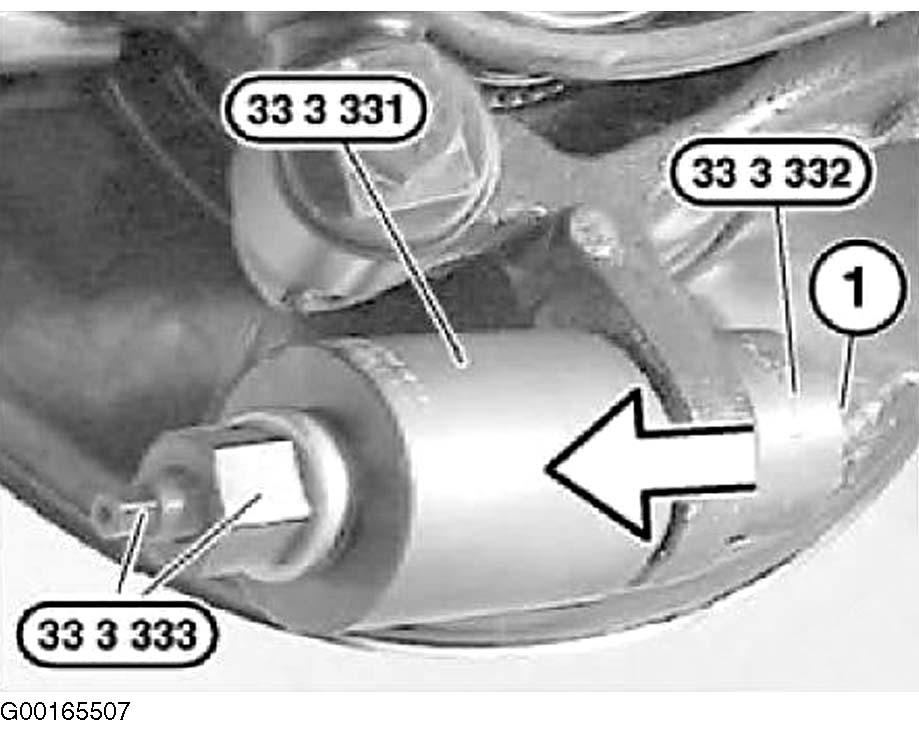

- Pull out rubber mount with special tool (33 3 331/332/333). Use commercially available 12 mm nut (1). See Fig 2.

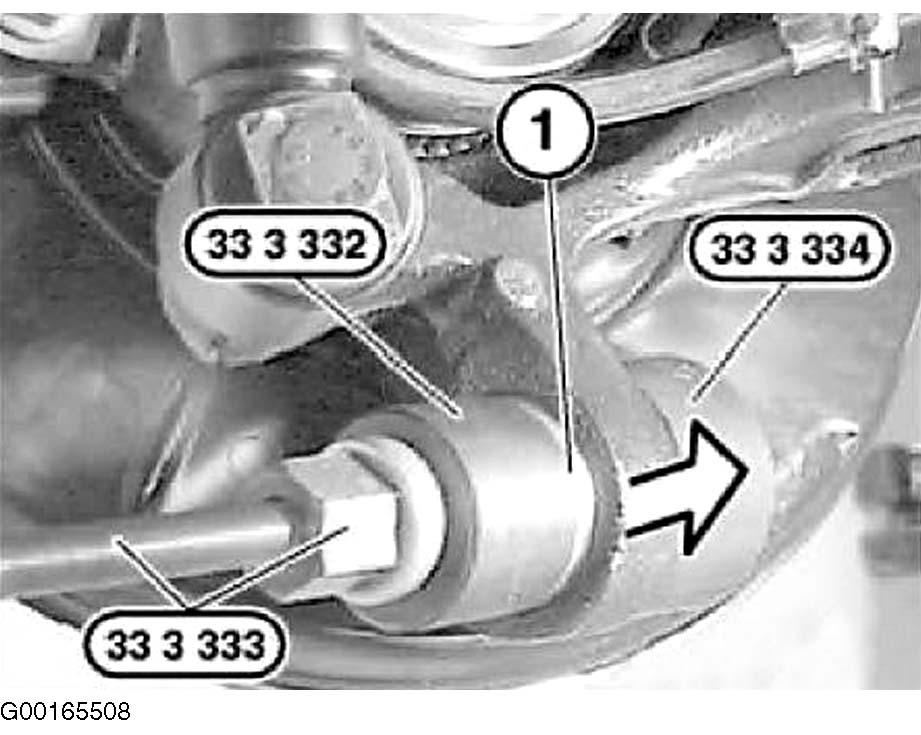

- Pull in new rubber mount (1) as far as the previously measured protrusion (A) using special tool (33 3 332/333/334). See Fig 3.
- Fit eccentric washer (2). Observe bolt insertion direction opposing direction of travel (F). See Figure. Tighten eccentric bolt nut to specification. See TORQUE SPECIFICATIONS .
- Perform wheel alignment check. See WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES under ADJUSTMENTS.
