Coil Spring: Removal
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support vehicle. Remove rear wheel.
- Remove drive axle from differential. See appropriate DIFFERENTIALS & AXLE SHAFTS article in DRIVE AXLES.
- Detach panel from fuel tank in rear area.
- Remove stabilizer bar from rear axle carrier on side to be replaced.

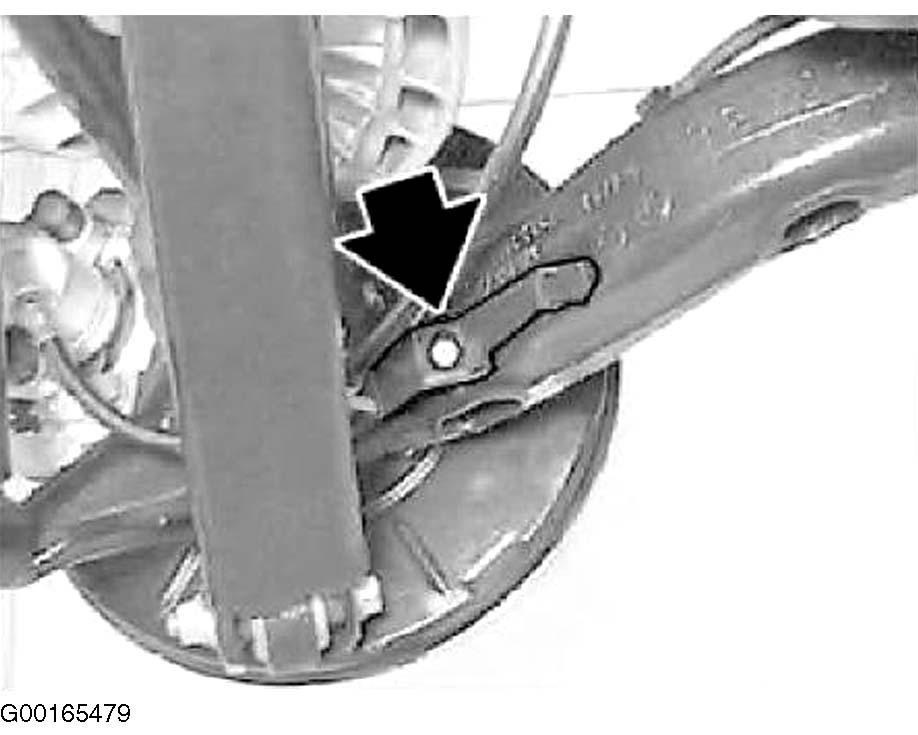

- Unfasten bracket for brake line on trailing arm. See Figure.
- Support trailing arm with a lifter (1). Release bolt and lower lift. See Figure.
- Press wheel suspension down and remove coil spring out to one side. See Fig 1.
CAUTION:
The brake line must not be exposed to traction loads.
