Coil Spring: Installation
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

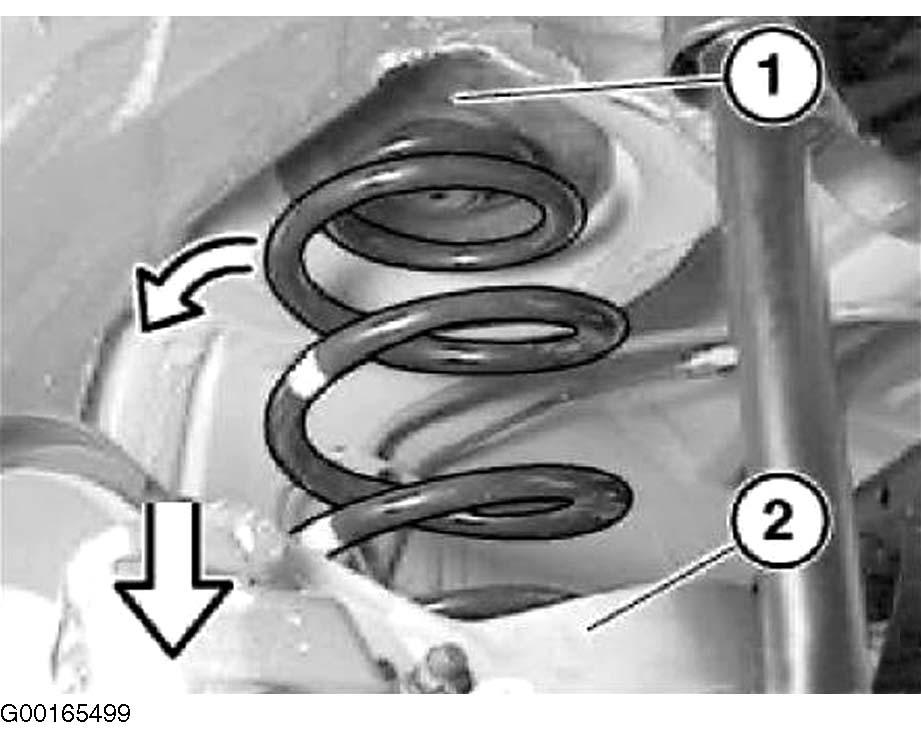

On the rough road package version, the top spring pad (1) is.6" (14.5 mm) thick. See Figure.
- Check lower (2) and upper (1) spring pads for damage. Replace if necessary.
- Press spring pad at bottom into control arm.
- Preinstall top spring pad in spring.
- Place spring on spring pad installed in control arm and position spring pad at top on body. The spring pads must be positively seated in the body and the control arm. Otherwise, there is a risk the coil spring will jump out of the centering mount and cause noises.

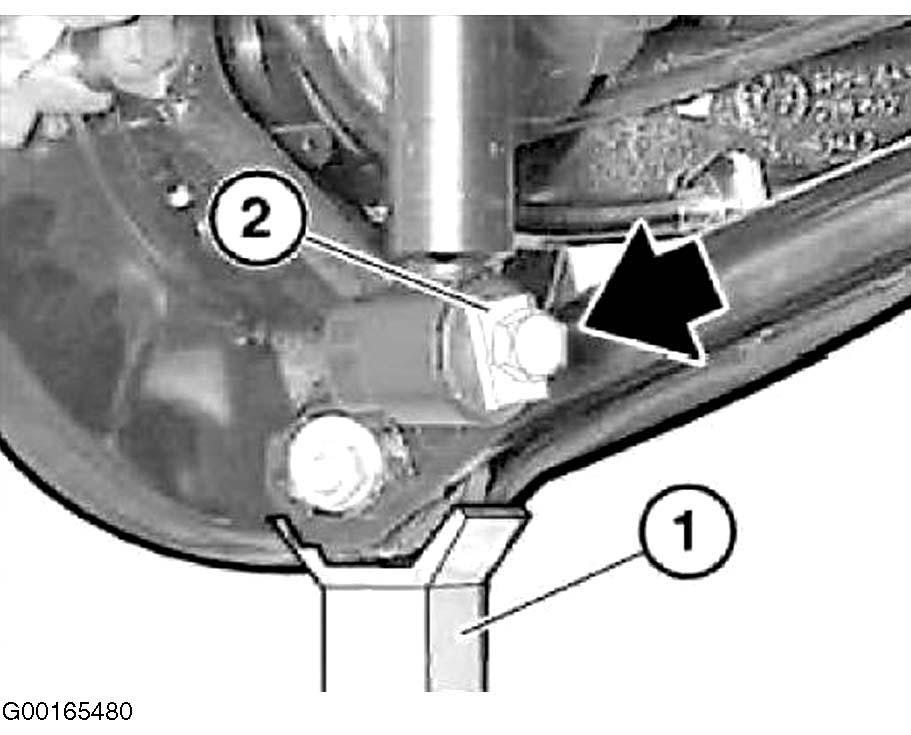

- To complete installation, reverse removal procedure. Thrust washer (2) on rubber mount must point to screw head. See Figure. Tighten screw to specification. See TORQUE SPECIFICATIONS .
