Axle Carrier Assembly: Installation

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace damaged threaded bolts, if necessary.
  2. To install, reverse removal procedure. Replace self-locking nuts. Damaged threads in bushings on body side can be repaired with Helicoil thread inserts. These inserts must be fitted flush with the original thread. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

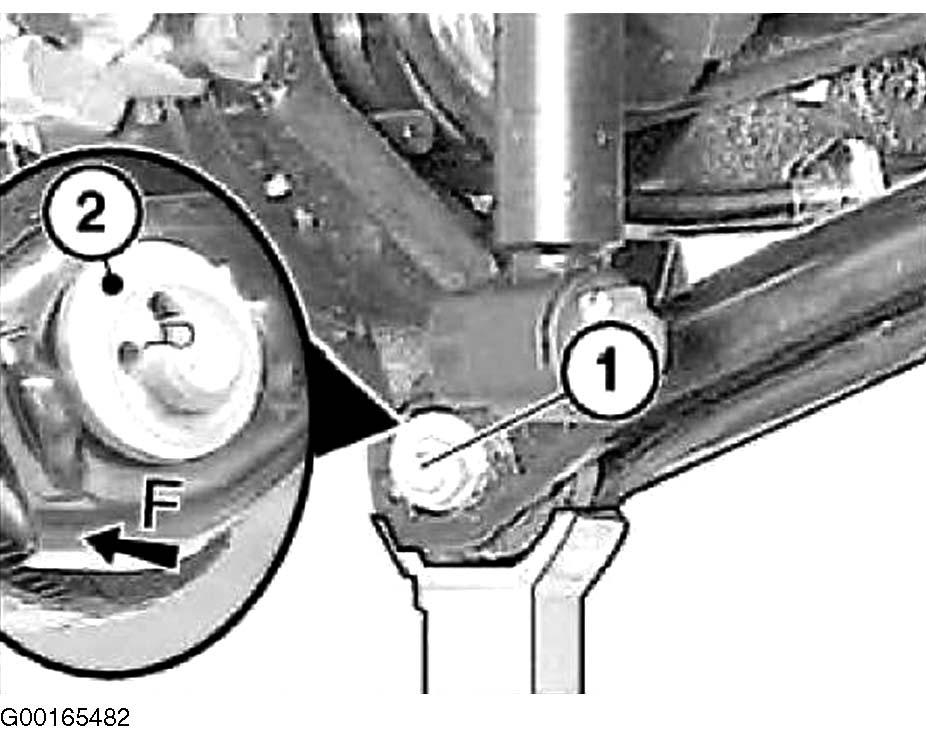

  3. When installing eccentric bolt on trailing arm, note insertion direction of bolt. F is direction of travel. Fit eccentric washer (2). See Figure. Tighten bolt to specification. See TORQUE SPECIFICATIONS .
  4. When installing shock absorber to trailing arm bolt, thrust washer (2) on rubber mount must point to screw head. See Figure.
