Remount ride height sensor, front

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

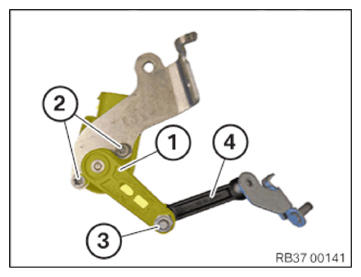

Release nut (3) and remove jointed rod (4) .
Release screws (2) and remove holder from ride height sensor (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Position holder on new ride height sensor (1) .

Tighten down screws (2) .

TIGHTENING TORQUE SPECIFICATIONS

Ride height sensor to holder
M5	Tightening torque	5 Nm

Position jointed rod (4) .
Tighten nut (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Jointed rod to ride height sensor
M6	Tightening torque	8 Nm
