Install the backrest lock
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

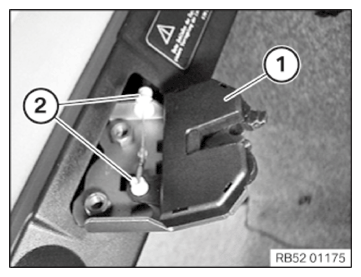

- Clip in the Bowden cable (2) in the backrest lock (1).
Check for correct fit of the Bowden cable (2) on the backrest lock (1).
- Insert the backrest lock into the body and feed in the guide (1) into the recess (2).
- Screw in the screws (2) several rotations.
- Clip in the Bowden cable into the holder (1).
- Lock the rear seat backrest and press back hard.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Backrest lock to body | ||
|---|---|---|
| M8 | Tightening Torque | 19 Nm |
