Install lumbar support on front seat

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Completely insert the lumbar support (2) including drive unit and valve body.
Carefully insert the lumbar support (2) from the bottom between the spring wires and the backrest padding.
Attach the lugs (1) of the lumbar support (2) to the highlighted spring wires.
Check the lugs (1) are positioned correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

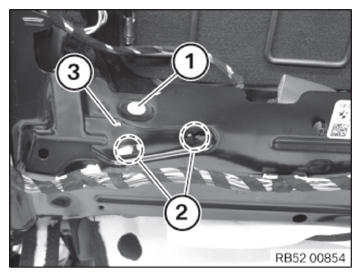

Insert the valve body (1) with guides (2) into the backrest frame.
Clip in the valve body (1) using the detent (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in the drive unit (3) and the valve body (4).
Insert the clips (2).
Connect connector (1).
Run a functional check.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the welt of the backrest cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the backrest cover (1) in the signaled area.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to MOUNTING THE REAR PANEL ON THE FRONT SEAT BACKREST .
