Installing inner cover on front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

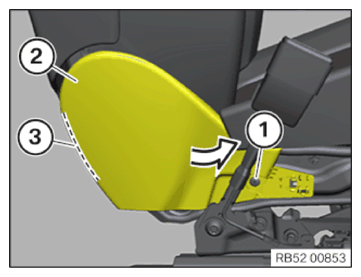

- Check guides (1) of the cover (2) for damage; replace cover as necessary.
- Feed in the cover (2) in the arrow direction with the guides in the area (3).
- Replace the blind rivet (1).
Parts: Blind rivet
- Fit the cover (2) using the blind rivet (1) to the seat mechanism.
- Hook the cable into the cover (2) if appropriate.
Follow-up work
- Refer to INSTALLING FRONT SEAT .
