Remove temperature sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Working on fuel system.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
Preliminary work
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING THE COVER PANEL OF THE SERVICE OPENING .

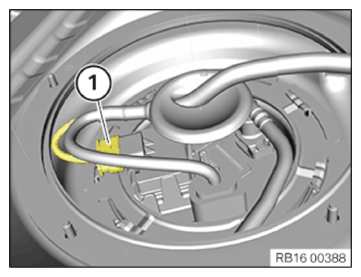

- Disconnect plug connection (1).

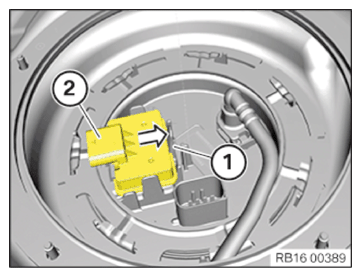

- Carefully press the lug (1) in the direction of the arrow.
- Remove the temperature sensor (2) towards the top.
