Remove front fuel supply line
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot fluids.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
- Refer to REMOVING HOLDER OF DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to REMOVING COOLANT EXPANSION TANK .
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .
- Refer to REMOVING SIDE UNDERBODY PLANKING .

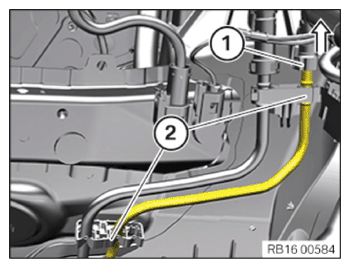

- Unlock and disconnect snap fastener (1).
- Unclip the fuel supply line from the holders (2).
- Unlock and disconnect snap fastener (1).
- Unclip the fuel supply line from the holders (2).
