Installing the front fuel supply line
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Position the fuel delivery line.
- Clip the fuel supply line into the holders (1).
- Position the snap fastener (2) and connect.

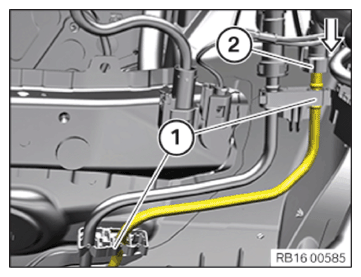

- Position the snap fastener (1) and connect.
- Clip the fuel supply line into the holders (2).
Follow-up works
- Refer to INSTALLING THE UNDERSHIELD ON THE SIDES .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to ATTACHING THE FRONT LEFT WHEEL .
- Refer to INSTALLING COOLANT EXPANSION TANK .
- Refer to INSTALLING HOLDER OF THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING BATTERY GROUND LEAD .
