Replacing oil pump

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

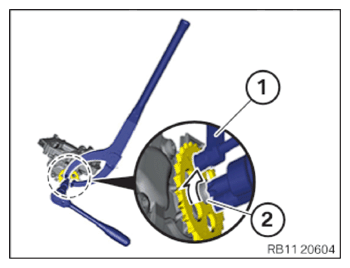

Position special tool 0 491 440 (23 0 020) (1) on the recesses on the sprocket wheel.
Block sprocket wheel with the special tool 0 491 440 (23 0 020) (1).

NOTE: TECHNICAL INFORMATION
The thread is a left-hand thread.

Loosen screw (2) clockwise.

Courtesy of BMW OF NORTH AMERICA, INC.

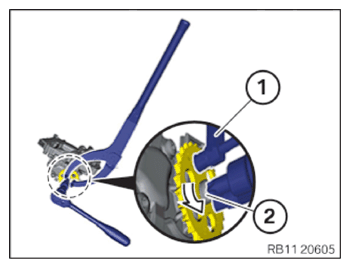

Replace the screw (2).
Parts: Screw

NOTE: TECHNICAL INFORMATION
The thread is a left-hand thread.

Tighten screw (2) counterclockwise.

TIGHTENING TORQUE SPECIFICATIONS

Oil pump sprocket wheel
M8x35 screw Replace screw. Left hand threads.	Joining torque Angle of rotation	5 Nm 90°
M8x35 screw Replace screw. Left hand threads.	Joining torque Angle of rotation	5 Nm 90°

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the special tool 0 491 440 (23 0 020) (1).
