Remove oil pump
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISING THE VEHICLE USING A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.
Preliminary work
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to DRAINING THE MOTOR OIL .
- Refer to REMOVING LOWERING OIL PAN SECTION .

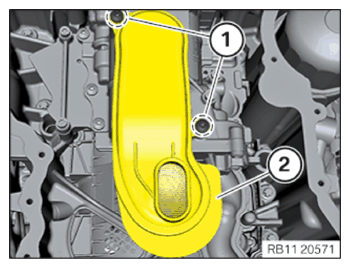

- Loosen screws (1).
- Remove the intake pipe (2).

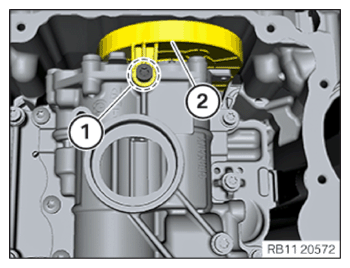

- Loosen screw (1).
- Feed out and remove the chain protector (2).
- Loosen screws (1).
- Loosen screw (2).
- Loosen screw (3).

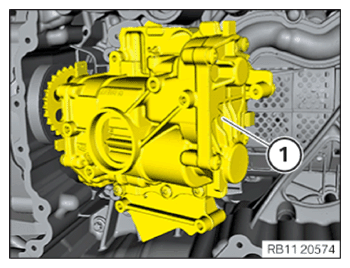

- Unscrew the oil pump (1) in a downwards direction and feed out and remove.
