Install oil pump

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Turn in oil pump (1) upward, guide in, and position.

Courtesy of BMW OF NORTH AMERICA, INC.

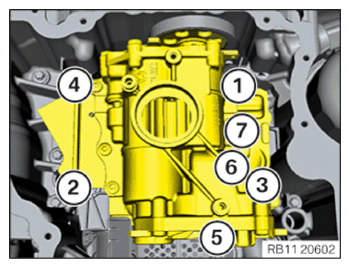

Tighten the screws (1) to (7).

TIGHTENING TORQUE SPECIFICATIONS

Oil pump
M6x20 screw	Tightening torque	8.4 Nm
M6x50 screw	Tightening torque	8.4 Nm
M6x100	Tightening torque	8.4 Nm

Fig 1: Oil Pump Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Guide in chain guard (2) and position.
Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Oil pump
M6x20 screw	Tightening torque	8.4 Nm
M6x50 screw	Tightening torque	8.4 Nm
M6x100	Tightening torque	8.4 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

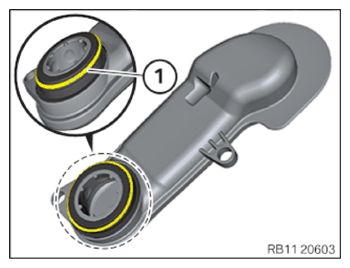

Coat O-ring (1) with motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.
Position intake pipe (2).
Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Oil pump
M6x20 screw	Tightening torque	8.4 Nm
M6x50 screw	Tightening torque	8.4 Nm
M6x100	Tightening torque	8.4 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE LOWER OIL PAN SECTION .
Refer to TOPPING UP MOTOR OIL .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
