Installing the automatic air recirculation control sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

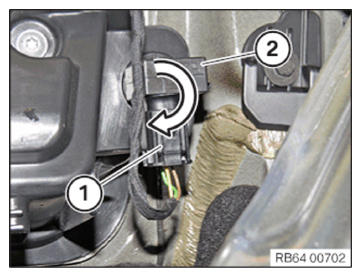

Correctly position the automatic air recirculation control sensor (2) and twist in the arrow direction up to the stop.
Position and connect the connectors (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING WINDSHIELD PANEL COVER .
Installing the rear right engine compartment cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the battery cover .

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
- Remove the special tool 2 452 007 from the battery.
Courtesy of BMW OF NORTH AMERICA, INC.
- Install the cover (2).
- Lock the lock (1).
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
