Installing control electronics for ionizer

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Connect and lock the connector on the control electronics.

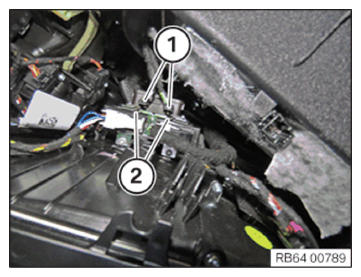

Correctly position the control unit and push it upwards until the locking mechanism (2) locks.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

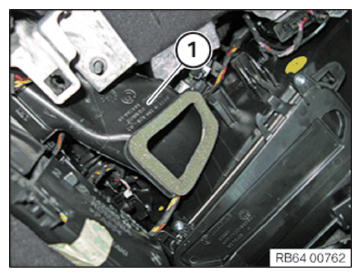

Correctly position the air duct (1) and engage with the air conditioning system.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE FOOTWELL TRIM PANEL ON THE RIGHT .
Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
