Remove rear-compartment stratification flap motor, right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The controller drive must be readdressed after replacement.
Addressing can only be carried out with the diagnosis system.
The controller drive must be readdressed after replacement.
Addressing can only be carried out with the diagnosis system.
Preliminary work
- Refer to REMOVING FOOTWELL TRIM PANEL ON THE RIGHT .
- Release the air duct (1) from the detents in a downwards direction.

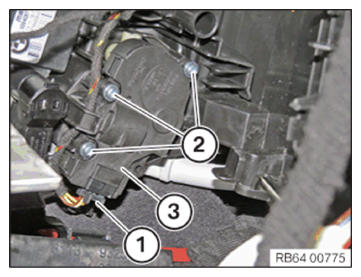

- Unlock plug connection (1) and disconnect.
- Release screws (2) and remove the rear stratification flap motor (3).
