Installing the rear stratification flap motor, left
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

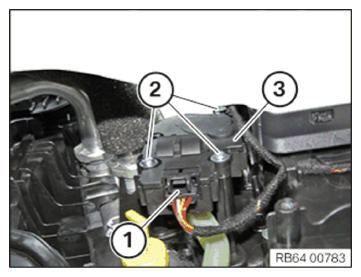

- Correctly position the rear stratification flap motor (3) and tighten the screws (2).
- Connect connectors (1) and lock.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

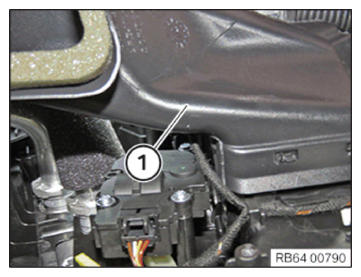

- Correctly position the air duct (1) and engage with the heating and air-conditioning unit towards the top.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Follow-up work
